AGM Start-stop vent plug
Company profile:
Zhongshan Oursun New Energy Co., Ltd. is a ISO-certified manufacturer specializing in advanced battery components. Located in China. We are professional to manufact battery status indicators and battery safety valve, AGM Start-stop vent plug, bushing, battery box . All products are independently researched and developed, designed and produced, and have some technical patents.
The AGM Start-stop vent plug is sturdy and durable with an excellent finish that gives a long service life. There is a built in PE filter that ensures it provides a splash proof or anti splash feature. It is because of the filter that corrosive acid fumes do not escape and become the cause of a fire hazard and helps keep the battery exterior completely dry. By arresting the acid fumes damage to costly equipment around the battery can also be prevented.
AGM Start-stop vent plug basic Info:
AGM Start-stop vent plug
-High Stability
-High Acid Resistance
-High-Temperature Resistance
-Resistance to Flame
AGM battery safety valve was designed to be Leak-proof and Hermetically Sealed
Work more than 100,000 times for Opening & closing Pressure
Tracking Quality from Raw Material to Finished Product
Guarantee 100% Qualified before delivery
Customized Design Depending On Your Demands
Type: AGM battery safety valve, Safety Relief Valves, Adjustable Relief Valves, Pressure Reducing Control Valves,
Pressure Regulators
AGM Start-stop vent plug Basic Info:

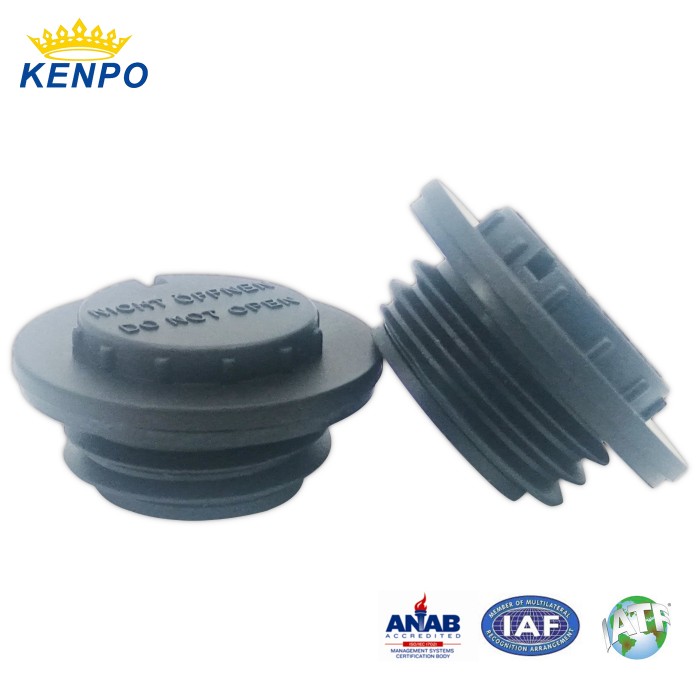

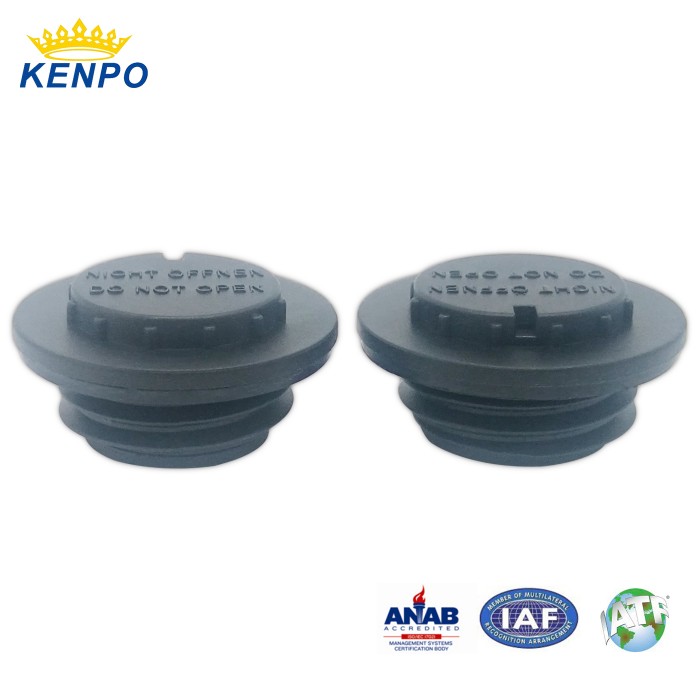

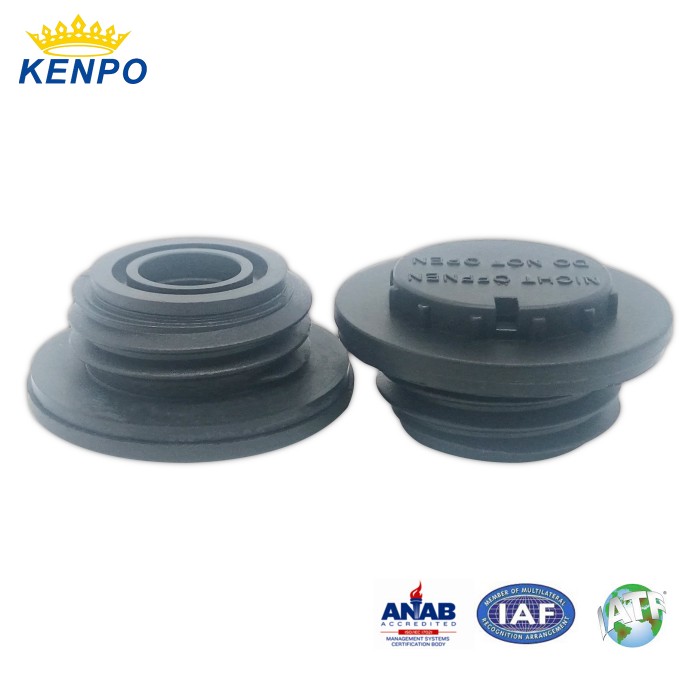

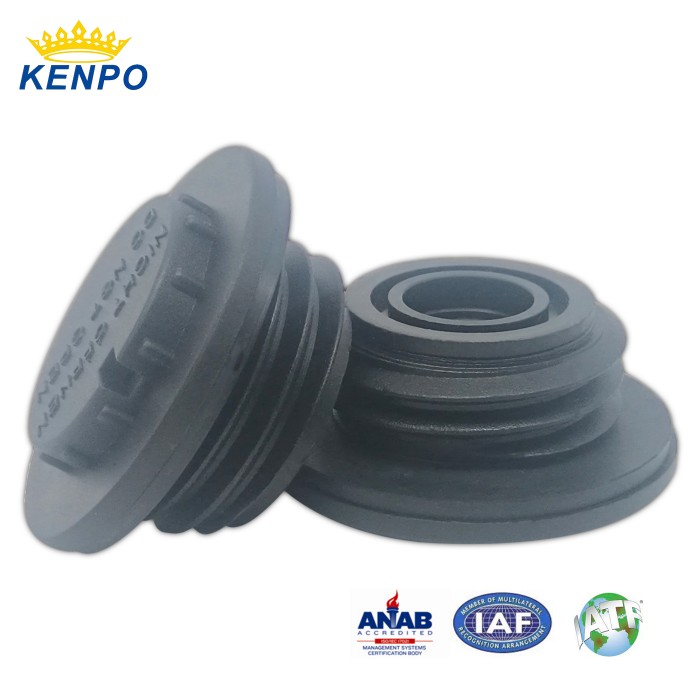

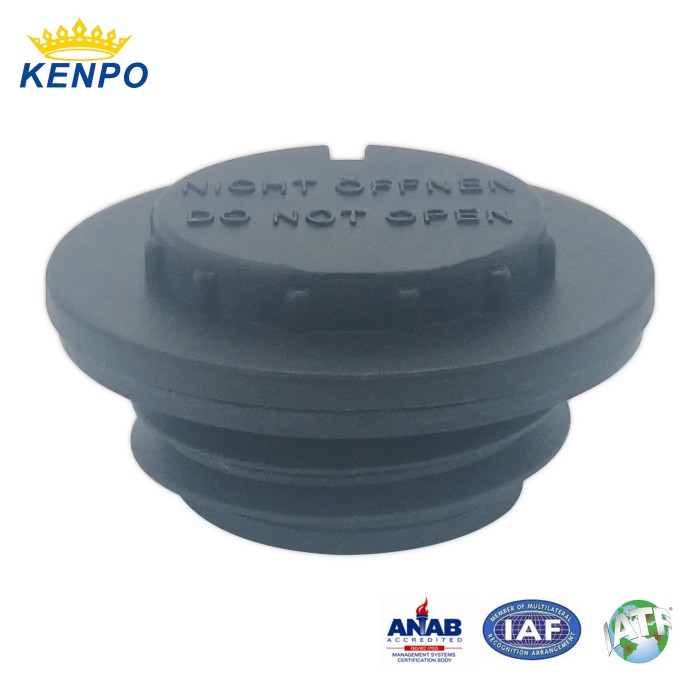

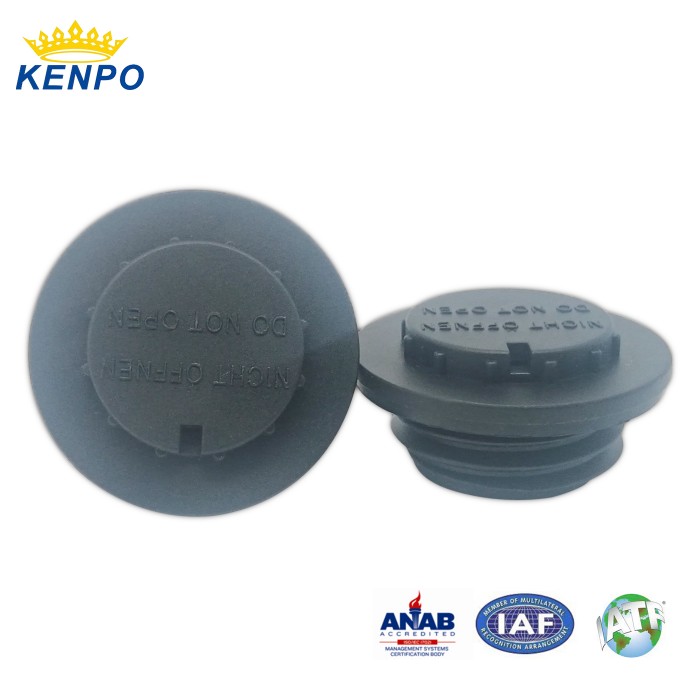

AGM Start-stop vent plug Image:
Certificate：
AGM Start-Stop Battery Vent Plug
Engineered for Extreme Performance & Safety
Key Advantages:
High Stability – Maintains consistent pressure regulation (±2% variance) across 50,000+ start-stop cycles
Ultra Acid Resistance – Special polymer blend withstands 98% sulfuric acid concentration without degradation
High-Temperature Endurance – Operates reliably from -40°C to +120°C (peak resistance to 150°C for 2hrs)
Flame Retardant – UL94 V-0 certified material prevents flame propagation (self-extinguishing in <3s)

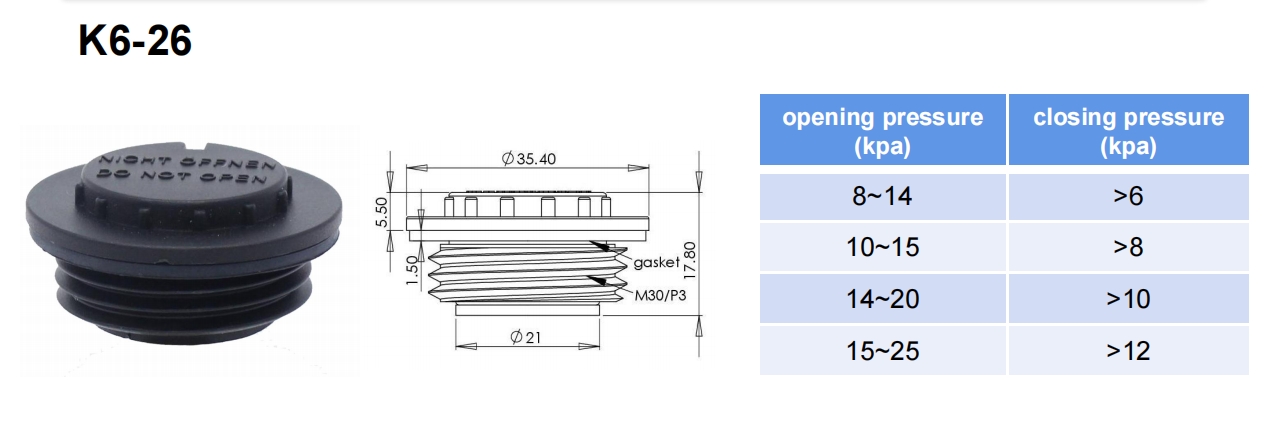

Technical Specifications:
Material: Glass-fiber reinforced PP (Patent No. [XX])
Pressure Range: 7-40 kPa (adjustable)
Ventilation Rate: 0.05-0.2 L/min @ 20kPa
Service Life: 8-10 years (or 3000+ deep cycles)
Unique Safety Features:
Triple-Layer Filtration System:
PE foam pre-filter
Nano-fiber acid coalescer
Flame arrestor
Auto-Sealing Design: Instant closure upon impact/vibration
Compliance & Certifications:
Meets DIN 43531 / JIS D 5302 standards
RoHS ompliant
Ideal for:
• Start-stop vehicles
• Hybrid/electric auxiliary batteries
• High-vibration industrial equipment
Available Customizations:
Color coding (RAL/ Pantone)
OEM branding
Pressure threshold adjustments
