Company info
Zhongshan Oursun New Energy Co., Ltd. is specializing in the field of battery busbars, with a professional team and rigorous processes, the company has become a reliable choice in the industry. Relying on the backing of large manufacturers and financial support, the company uses high-purity copper or high-quality aluminum as raw materials to ensure excellent conductivity, stable current transmission, exquisite production processes, and the ability to precisely manufacture various specifications of busbars, suitable for multiple scenarios such as electric vehicles and energy storage systems. The products also have excellent mechanical strength, can withstand complex environments, and have multiple insulating materials, which have been rigorously tested and possess wear-resistant and temperature-resistant properties. They have passed ISO, CE, and RoHS certifications, providing both quality and environmental protection guarantees. Choosing Ovosen means choosing a stable and reliable battery busbar solution, helping various battery systems operate efficiently.

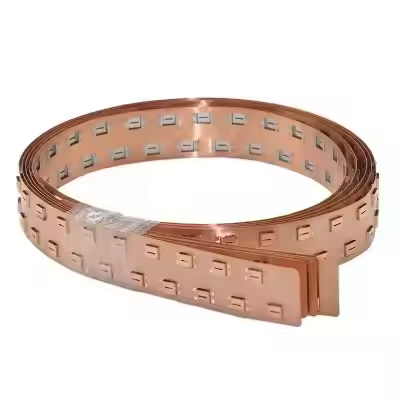

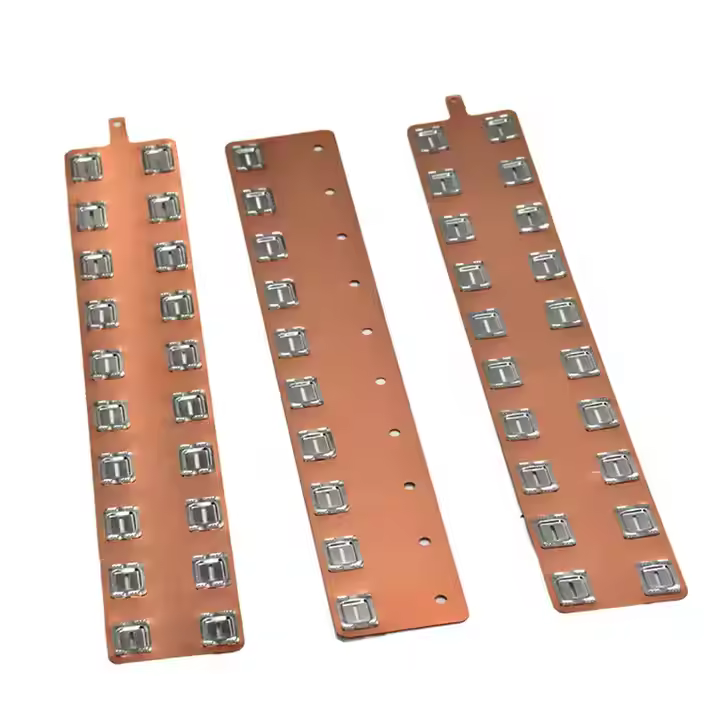

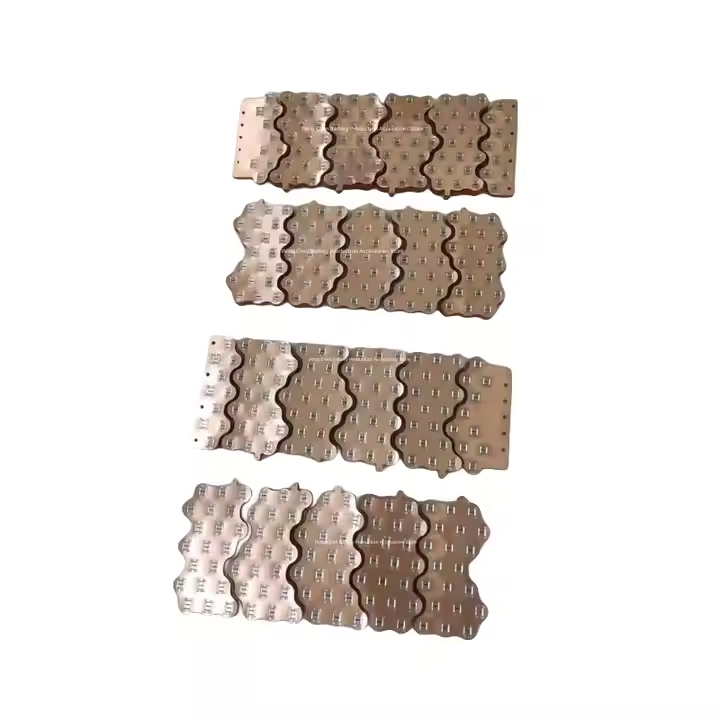

Product image
A battery busbar is a crucial electrical component in battery-related systems. Here's a detailed introduction:
Definition and Function

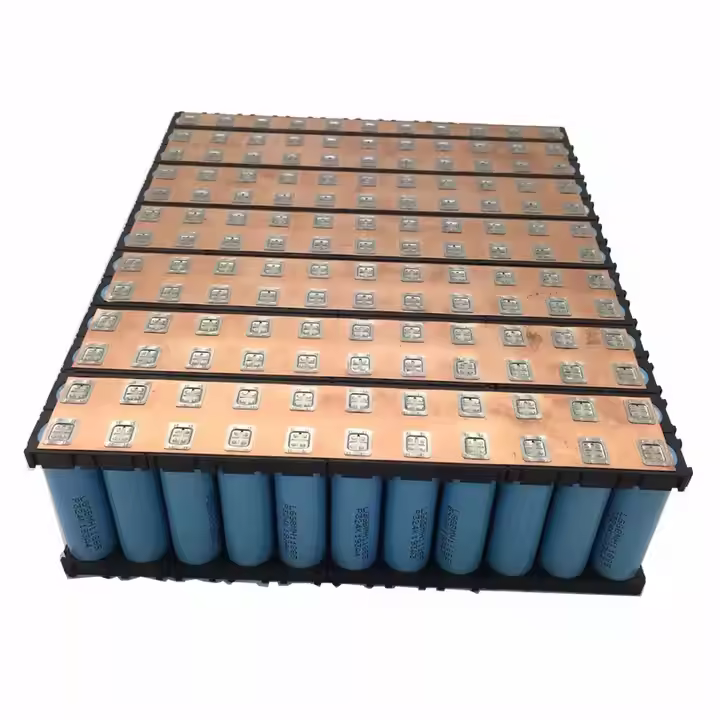

A battery busbar is a conductive strip, usually made of materials like copper or aluminum, that serves as a common connection point for multiple battery cells or battery packs. Its main function is to distribute electrical current evenly among connected battery components, enabling efficient power transfer. For example, in an electric vehicle's battery system, the busbar connects individual battery modules, allowing the combined power of all modules to be channeled to the vehicle's drivetrain.
Material Selection
Copper: Copper busbars are highly conductive, with excellent electrical conductivity that helps minimize power losses during current transmission. They also have good corrosion resistance and can withstand high currents. However, copper is relatively heavy and more expensive compared to some other materials.
Aluminum: Aluminum busbars are lighter in weight, which is advantageous in applications where weight reduction is crucial, such as in aerospace or some portable electronic devices. Although their conductivity is lower than copper, they can still handle significant currents and are more cost-effective.
Design Considerations
Current-Carrying Capacity: The design of a battery busbar must take into account the maximum current it needs to handle. A busbar with insufficient current-carrying capacity can overheat, leading to reduced efficiency, component damage, or even safety hazards. Engineers calculate the appropriate cross-sectional area of the busbar based on the expected current load.
Mechanical Strength: It needs to have sufficient mechanical strength to withstand vibrations, impacts, and other mechanical stresses, especially in mobile applications like vehicles. Some busbars are reinforced or have special shapes to enhance their mechanical durability.
Insulation: In some cases, the busbar may require insulation to prevent short circuits and ensure electrical safety. Insulation materials can be applied around the busbar or it can be designed to be isolated from other components in the system.
Applications
Electric Vehicles: As mentioned, battery busbars play a vital role in connecting battery modules and facilitating power flow to the motor, battery management system, and other electrical components.
Energy Storage Systems: In large-scale battery energy storage installations, such as those used in power grids or industrial facilities, busbars are used to connect multiple battery racks, enabling the efficient storage and release of electrical energy.
Renewable Energy Systems: For example, in solar power systems with battery storage, busbars help manage the flow of electricity between solar panels, batteries, and the electrical load or grid.
Advantages:
Efficient Current Distribution: By providing a single connection point, it simplifies the electrical wiring of a battery system and ensures that current is distributed evenly, improving the overall performance of the battery system.
Space-Saving: Reduces the complexity of wiring, saving space inside battery enclosures or electrical cabinets, which is important in applications where space is limited.
Reliability: Well-designed busbars can enhance the reliability of a battery system by minimizing the risk of loose connections or electrical failures that can occur with complex wiring setups.
