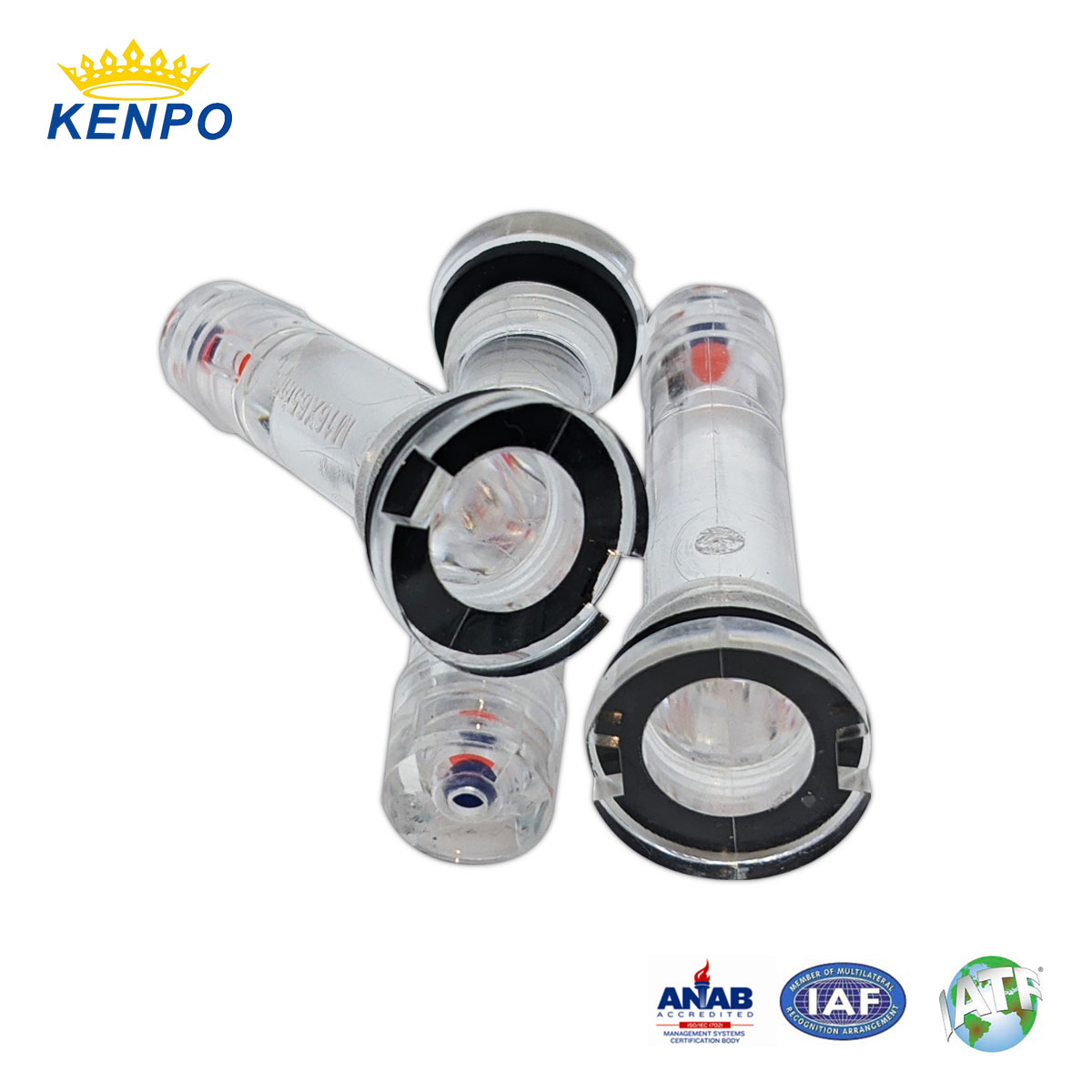

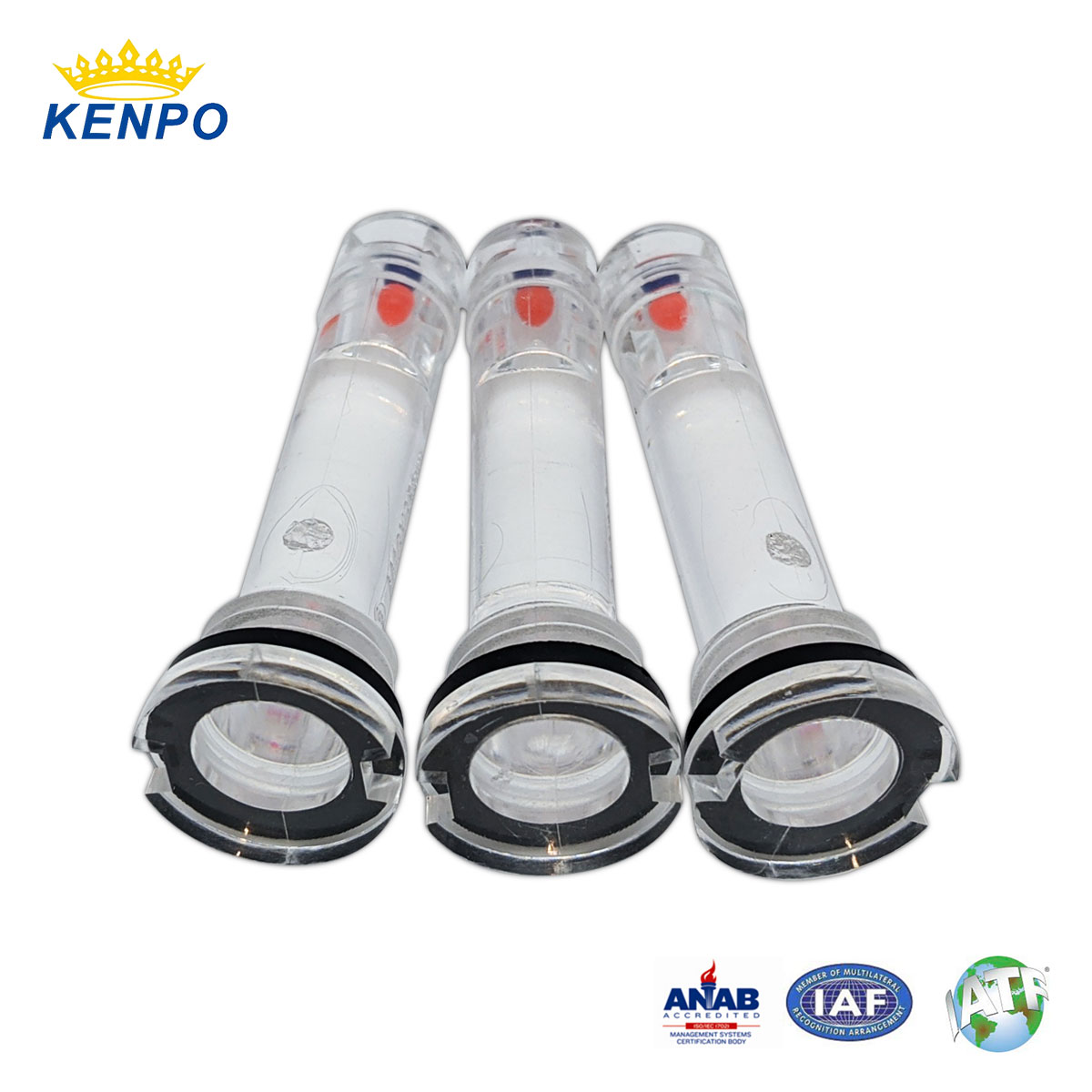

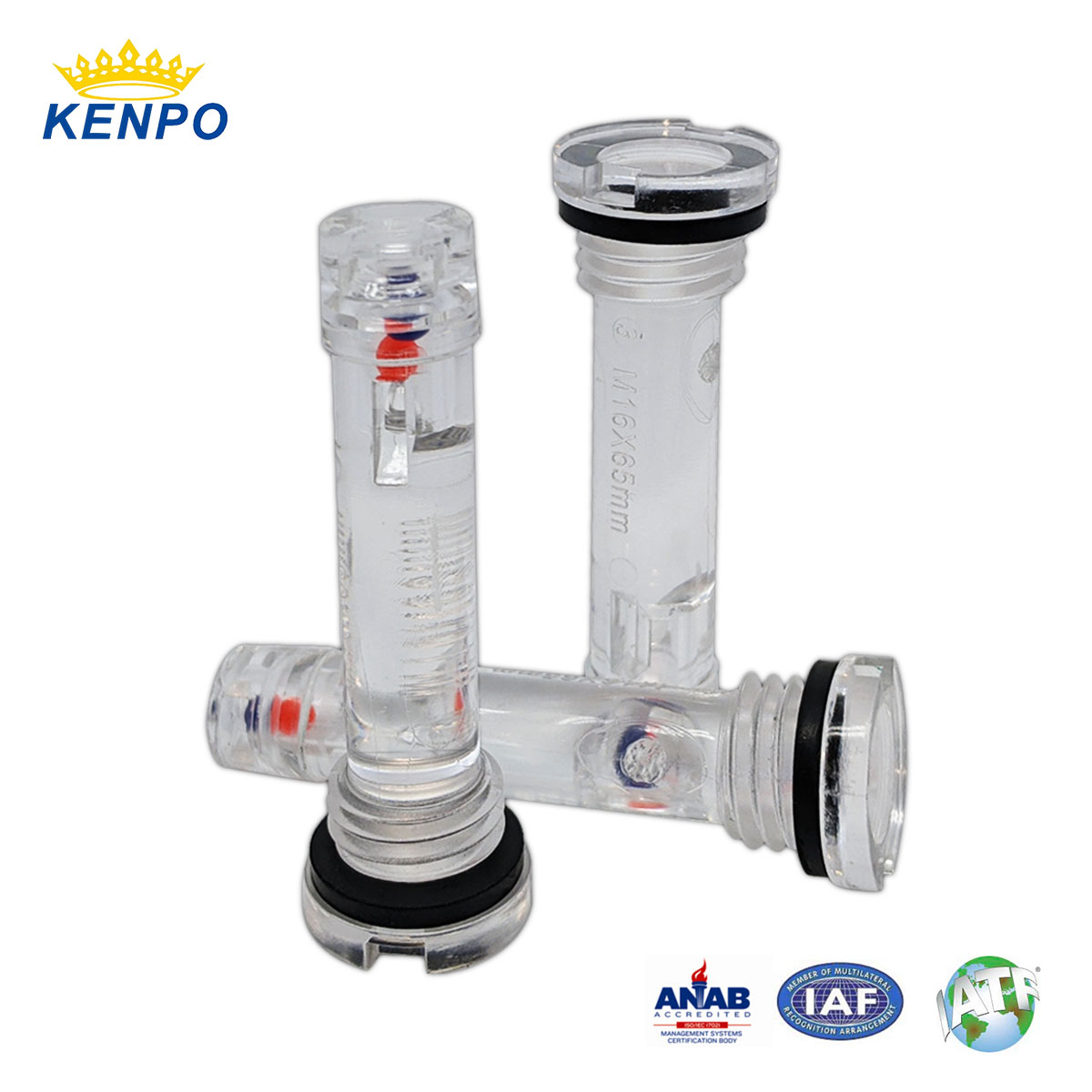

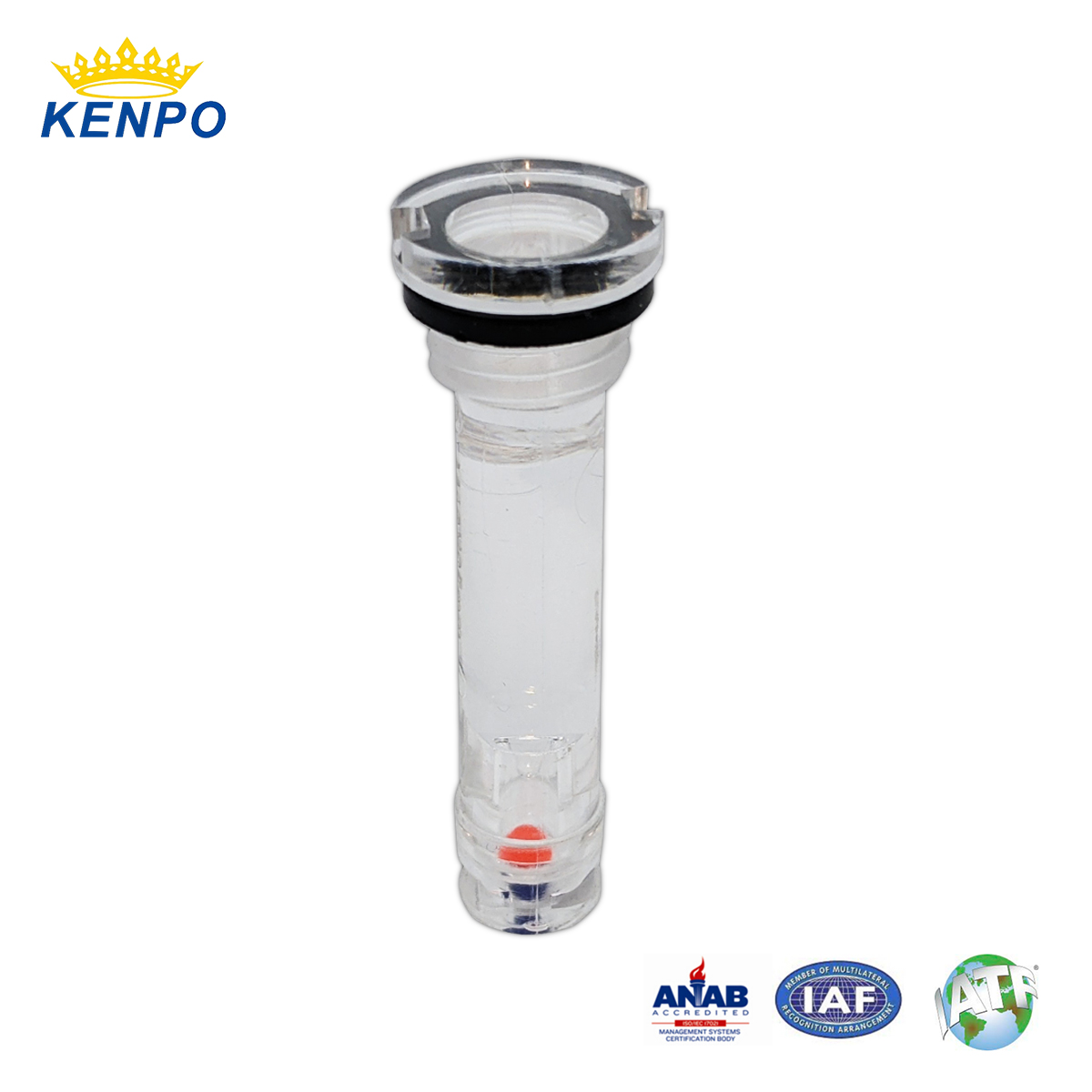

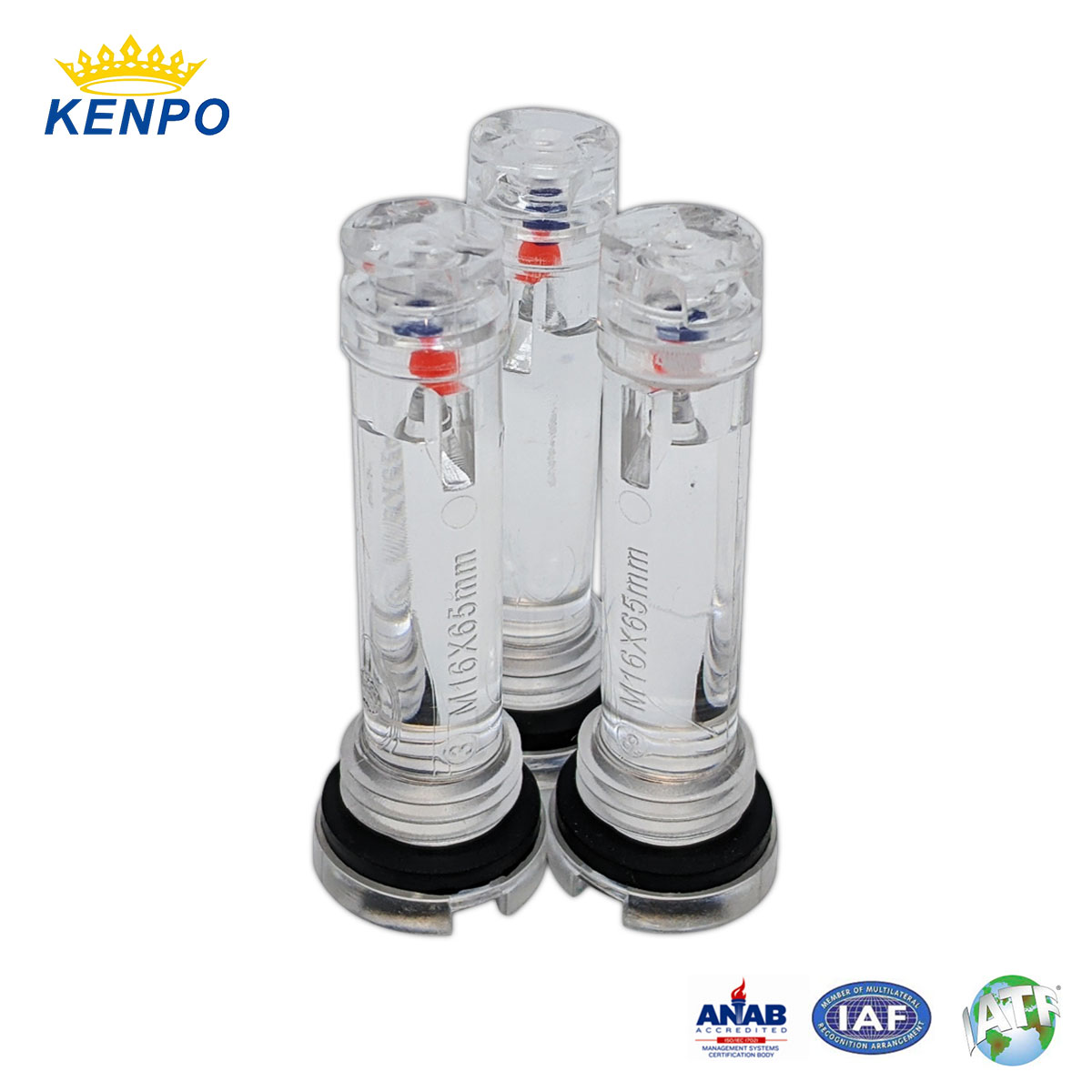

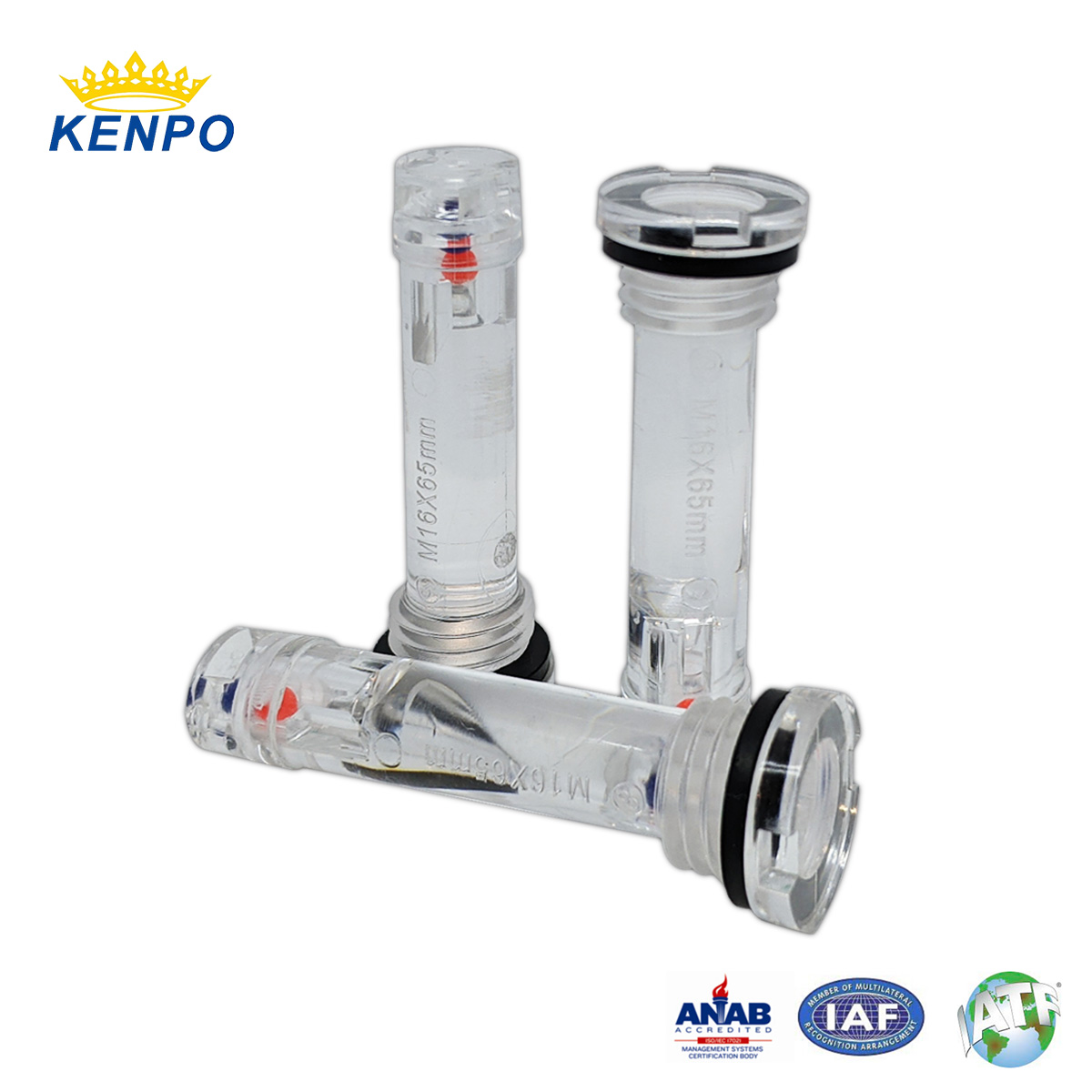

The battery indicator, often referred to as the magic eye, is an essential device for monitoring battery conditions, boasting a range of impressive features that make it indispensable in various applications. Its design and production are centered around meeting high standards of performance, reliability, and adaptability, ensuring it can seamlessly integrate into diverse battery systems while providing accurate and timely status updates. From automotive to renewable energy sectors, this indicator has become a cornerstone of efficient battery management, offering users a straightforward way to assess battery health without complex technical tools.
Material-wise, the light guide rod of this battery indicator is constructed using imported materials from Japan, a choice rooted in decades of material science research and industry validation. These materials, typically advanced grades of polymethyl methacrylate (PMMA) or polycarbonate (PC) with specialized additives, bring about two key benefits: exceptional light transmittance and high precision.
The superior light transmittance of these materials is nothing short of remarkable, often exceeding 95% across the visible light spectrum (400-700nm). This means that when light travels through the rod—whether from the indicator’s internal color-changing mechanism or external ambient light—it retains nearly all its original intensity, with minimal scattering or absorption. For users, this translates to color displays that are vivid and sharp, even in challenging lighting conditions. Consider a technician inspecting a bank of batteries in a dimly lit warehouse: the high transmittance ensures that the indicator’s green (full charge), yellow (low charge), or red (needs replacement) signals remain distinct, leaving no room for misinterpretation. In contrast, indicators using standard materials with 70-80% transmittance often produce faded or blurred colors, increasing the risk of errors—such as mistaking a low-charge yellow for a full-charge green—which could lead to unexpected downtime or equipment failure.
Equally critical is the material’s high precision, which manifests in extraordinary dimensional stability. The light guide rod is manufactured to tolerances as tight as ±0.01mm, a level of accuracy achieved through advanced extrusion and cutting processes. This precision ensures that the rod fits perfectly with other components during assembly, such as the housing, sealing gaskets, and the specific gravity ball. A perfect fit eliminates gaps that could allow dust, moisture, or corrosive fumes to infiltrate the indicator—common issues in poorly made alternatives that often lead to fogging, discoloration, or electrical malfunctions. For example, in a lead-acid battery used in a construction vehicle, where vibrations and temperature fluctuations are constant, the light guide rod’s ability to maintain its dimensions ensures that the indicator’s color signals remain unobstructed, providing reliable readings even after thousands of hours of operation. This dimensional stability also simplifies assembly, reducing production time and minimizing the risk of human error during manufacturing.
High reliability and durability are achieved through the battery indicator’s use of high-quality materials, advanced injection molding machinery, proven processing methods, automated assembly lines, and cutting-edge testing devices. This holistic approach to manufacturing ensures the indicator can withstand the harshest operating conditions, from extreme temperatures to corrosive environments.
The high-quality materials used in its construction extend beyond the light guide rod. The outer housing, for instance, is crafted from glass-reinforced polypropylene (PP) with UV stabilizers, chosen for its exceptional resistance to wear, tear, and chemical attack. This material can endure prolonged exposure to sulfuric acid fumes—common in lead-acid battery compartments—without cracking, discoloring, or losing structural integrity. In accelerated aging tests, samples of this housing exposed to 30% sulfuric acid vapor at 60°C for 1,000 hours showed no measurable degradation, a performance that far surpasses industry standards for similar components.
Advanced injection molding machinery, sourced from leading manufacturers like Engel and Haitian, ensures that each part of the indicator is molded with great accuracy. These machines feature computer numerical control (CNC) systems that regulate temperature, pressure, and cooling rates with precision to within ±1°C and ±2 bar, respectively. For the PP housing, this means uniform wall thickness (typically 1.2±0.1mm) and consistent material density, preventing weak points that could fail under stress. The molding process also incorporates in-line quality checks, such as laser dimensional scanning, which verifies critical dimensions like housing diameter and mounting hole positions within seconds, rejecting any parts that deviate from specifications.
Proven processing methods, developed through extensive research and practical experience, further optimize quality at every production step. One such method is ultrasonic welding, used to seal the housing and light guide rod together. This process generates high-frequency vibrations (20-40kHz) that create a molecular bond between the components, resulting in a seal strength of over 200N—strong enough to withstand the vibrations of a moving truck or the jolts of a rooftop solar system. The welding parameters, including amplitude and duration, are tailored to the specific materials used, ensuring a consistent bond across every unit. Post-welding inspections, using high-resolution cameras, check for weld uniformity, rejecting less than 0.05% of units for imperfections.
Automated assembly lines, staffed by six-axis robotic arms with precision grippers, ensure that components are put together with micron-level accuracy. These robots, programmed to perform up to 40 assembly operations per minute, handle tasks such as inserting the specific gravity ball, attaching sealing gaskets, and aligning the light guide rod with the housing. Each step is logged in a digital tracking system, which records the time, temperature, and pressure of each operation, allowing for full traceability. This eliminates the variability introduced by manual assembly, where even skilled workers might apply inconsistent pressure or misalign components, leading to performance discrepancies. For example, in a batch of 10,000 indicators assembled manually, defect rates can exceed 2%, whereas automated assembly reduces this to less than 0.1%.
Moreover, cutting-edge testing devices are used to thoroughly examine each product before it is shipped, subjecting them to a battery of rigorous assessments. These tests include:
Temperature cycling: Indicators are exposed to temperatures ranging from -40°C to 85°C, with 50 cycles of rapid heating and cooling (from -40°C to 85°C in 30 minutes). This simulates the extreme temperature swings experienced in automotive batteries, which can go from sub-zero winter mornings to over 70°C under the hood in summer.
Vibration testing: Using a shaker table, indicators endure vibrations of 10-2,000Hz with amplitudes up to 2mm, replicating the conditions in wind turbines or industrial machinery.
These tests, conducted by automated systems that log data in real time, ensure that only products meeting the highest standards are delivered. Less than 0.1% of indicators fail these tests, a testament to the manufacturer’s commitment to reliability. This rigorous testing guarantees the indicator’s long service life, with an average operational lifespan exceeding 5,000 hours in typical use—far longer than the 2,000-3,000 hours of many competing products.
Customization is a key feature of the battery indicator, allowing it to be tailored to meet the specific needs of customers across industries. This flexibility stems from a modular design approach and a dedicated engineering team with expertise in both mechanical design and battery chemistry, enabling rapid adaptation to unique requirements.
At the most basic level, customization includes adjustments to size and dimensions. The standard indicator ranges from 30mm to 80mm in length and 10mm to 25mm in diameter, but it can be modified to fit battery casings of any size. For example, a manufacturer of compact electric forklift batteries required an indicator just 25mm long to fit their space-constrained modules. The engineering team redesigned the internal components, reducing the length of the light guide rod and repositioning the specific gravity ball, while maintaining the same light transmittance and sealing performance. The prototype was delivered in 72 hours, and full production began within two weeks.
Hole positions are another customizable feature, critical for ensuring the indicator mounts securely to the battery casing. Using computer-aided design (CAD) software, the team can adjust the number, diameter, and spacing of mounting holes to match customer specifications. A renewable energy company, for instance, needed indicators with three mounting holes (instead of the standard two) to align with their battery racking system. The team modified the housing design, ensuring the new holes did not compromise the indicator’s structural integrity or sealing—tests later confirmed the modified units performed identically to the standard model under pressure and vibration.
The specific gravity ball, a key component that responds to changes in electrolyte density, is also highly customizable. This ball, typically made of glass-filled nylon or ceramic, can be calibrated to float at specific density levels, corresponding to different battery charge states. For lead-acid batteries used in cars, which have a fully charged electrolyte density of 1.26-1.28 g/cm³, the ball is designed to float at 1.26 g/cm³, triggering a green light. For deep-cycle batteries in boats, which operate at a lower density (1.22-1.24 g/cm³), the ball is adjusted to float at 1.22 g/cm³, ensuring accurate low-charge warnings. This customization is achieved by varying the filler concentration in the ball’s material—higher filler content increases density, allowing the ball to sink at a higher electrolyte density.
The manufacturer also offers fast prototyping services, a critical advantage for customers in the midst of product development. Using 3D printing (with resin or nylon materials) and CNC machining, the team can produce functional samples in as little as 24 hours for simple designs. These prototypes are not just visual replicas but fully functional, allowing customers to test light transmittance, sealing, and fit with their battery systems. A startup developing a home energy storage unit, for example, used three prototypes with different light guide rod lengths to determine the optimal visibility from a distance, ultimately selecting a 45mm rod that balanced readability and space constraints. This iterative testing saved the startup weeks of development time compared to relying on traditional prototyping methods.
Additionally, the manufacturer has the capability to handle large-scale production, with a monthly capacity of up to 3 million units. This scalability is supported by flexible manufacturing lines that can switch between custom designs with minimal downtime—typically less than 4 hours. For high-volume orders, such as a 500,000-unit request from an automotive battery supplier, the team implements a phased production plan, with daily quality checks to ensure consistency. Each batch undergoes 抽检 for light transmittance (targeting 95%+), dimensional accuracy (±0.02mm), and seal integrity, ensuring that even large orders meet the same strict standards as small batches. This makes the indicator suitable for use in automotive power batteries, energy storage batteries, UPS batteries, and other similar applications, where both customization and scalability are essential.
In the realm of quality control and certification, the factory producing the battery indicator has obtained ISO 9001, IATF 16949, and ISO 14001 certifications, each representing a commitment to excellence in specific areas of operation. These certifications are not mere formalities but living standards that shape every aspect of production, from raw material sourcing to waste management.
ISO 9001:2015, the cornerstone of the factory’s quality management system, ensures that every process—from supplier selection to final inspection—is documented, monitored, and continuously improved. For raw materials like the Japanese-imported light guide rod material, suppliers undergo a rigorous qualification process that includes audits of their own quality systems, batch testing reports, and on-site visits. Once approved, suppliers are evaluated quarterly based on criteria such as on-time delivery (target: 99%+), material consistency (measured by transmittance and dimensional checks), and defect rates (capped at 0.01%). This strict supplier management ensures that the factory starts with the highest-quality inputs, reducing the risk of downstream defects.
IATF 16949:2016, a certification specific to the automotive industry, adds layers of control tailored to the sector’s unique demands. This standard mandates a risk-based approach to production, using tools like Failure Mode and Effects Analysis (FMEA) to identify potential issues before they occur. For the battery indicator, FMEA analysis highlighted a risk of light guide rod misalignment during assembly, which could cause color distortion. In response, the factory added a vision system to the assembly line that checks rod alignment with 0.01mm precision, rejecting any units that deviate from the target position. This proactive measure reduced automotive customer complaints related to indicator accuracy by 80% in the first year of implementation. IATF 16949 also requires traceability to the component level, meaning every indicator can be linked to its raw material batch, production time, and test results—critical for automotive manufacturers managing recalls or quality audits.
ISO 14001:2015 certification demonstrates the factory’s commitment to environmental protection, with measures integrated into every stage of production. The injection molding process uses energy-efficient machines that reduce power consumption by 15% compared to older models, while excess plastic scrap is recycled into non-critical components like packaging inserts. Wastewater from cleaning processes is treated in an on-site facility, where pH levels are adjusted and contaminants are filtered out, ensuring compliance with local environmental regulations. Even the packaging for finished indicators is made from 80% recycled cardboard, with minimal plastic use. These efforts not only reduce the factory’s carbon footprint but also align with the sustainability goals of customers in the electric vehicle and renewable energy sectors, who increasingly prioritize eco-friendly suppliers.
To maintain these certifications, the factory undergoes annual third-party audits by organizations like TÜV SÜD and Intertek, with internal audits conducted monthly. These audits review process documentation, employee training records, and product test data, identifying areas for improvement. For example, a 2023 audit suggested optimizing the humidity testing cycle to reduce energy use; the factory responded by adjusting the chamber’s heating system, cutting energy consumption by 10% without compromising test rigor. Such continuous improvement ensures the certifications remain more than just credentials—they drive tangible enhancements in quality and sustainability.
When it comes to high-consistency mass supply, the manufacturer is equipped with automated production lines that cover injection molding, welding, assembly, and testing, all integrated into a seamless system that minimizes human intervention and maximizes precision.
The injection molding stage features 8 state-of-the-art machines, each capable of producing 300,000 components per month. These machines are linked to a central control system that monitors key parameters—melt temperature, injection pressure, cooling time—in real time, making automatic adjustments to maintain consistency. For the PP housing, for example, melt temperature is kept at 210±1°C, and injection pressure at 85±3 bar, ensuring each housing has uniform density and strength. Data from each machine is stored in a Manufacturing Execution System (MES), allowing engineers to track trends over time. If, for instance, a machine’s cooling time drifts by 2 seconds, the system alerts operators, who can adjust settings before defects occur. This proactive monitoring keeps the defect rate for molded components below 0.03%.
Welding, a critical step in ensuring the indicator’s seal integrity, is performed by 6 automated ultrasonic welding stations. These stations adjust frequency (20-30kHz) and energy output based on the component size, with sensors measuring weld depth to within 0.001mm. A vision system then inspects each weld for cracks or unevenness, rejecting any units that fail—typically less than 0.02% of total production. This level of precision ensures that the indicator’s seal remains intact even under extreme pressure, a key requirement for batteries used in marine or industrial settings.
The automated assembly line, consisting of 12 robotic workstations, handles component integration with remarkable efficiency. Robots pick and place parts using vacuum grippers that apply consistent pressure, ensuring the light guide rod sits flush with the housing and the specific gravity ball moves freely. Each assembly step is timestamped and logged in the MES, creating a digital “birth certificate” for every indicator that includes data on component sources, assembly parameters, and inspection results. This traceability allows customers to verify the origin and quality of each unit, a requirement for industries like aerospace and medical devices.
The automated testing line is the final checkpoint, with 10 stations conducting a battery of assessments. These include:
Light transmittance testing: Using a spectrophotometer, the line measures transmittance at 550nm (green), 580nm (yellow), and 620nm (red), ensuring all are above 95%.
These tests are conducted at a rate of 60 units per minute, with data stored in the MES for future analysis. Only indicators that pass all tests proceed to packaging, where they are labeled with a unique serial number linked to their test records.
This automated production setup allows the manufacturer to handle large orders efficiently, with lead times as short as 7 days for orders of 100,000 units. For customers with recurring needs, the factory offers a just-in-time (JIT) delivery program, where indicators are produced and shipped in batches aligned with the customer’s production schedule. A major automotive battery manufacturer, for example, receives weekly shipments of 50,000 units, reducing their inventory costs by 30% compared to storing a 3-month supply.
The manufacturer also maintains a buffer stock of common indicator models (typically 50,000 units), allowing for rapid fulfillment of urgent orders. In one instance, a data center experienced an unexpected surge in UPS battery replacements and needed 10,000 indicators within 48 hours; the factory shipped the buffer stock immediately and ramped up production to replenish it, ensuring the data center avoided downtime.
In summary, the battery indicator’s combination of high-quality materials, advanced manufacturing, customization flexibility, rigorous quality control, and scalable production makes it a versatile and reliable choice for monitoring battery conditions across industries. Its ability to deliver accurate, consistent performance in harsh environments, coupled with the manufacturer’s commitment to quality and customer service, has solidified its position as an essential component in modern battery management systems. As the demand for efficient energy storage continues to grow, this indicator will undoubtedly play an even more critical role in ensuring the reliability and longevity of battery technologies worldwide.

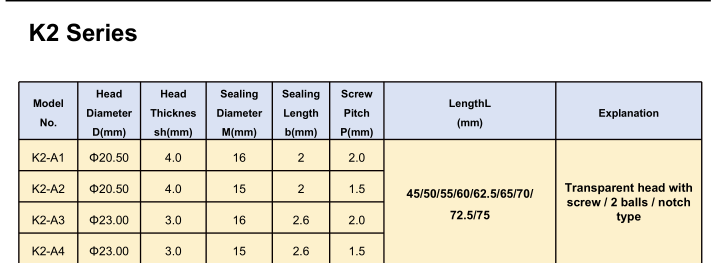

lead acid battery indicator basic info.
l
Q1:Are you a factory or trade company ?A:We are a manufacturing factory specialized in waterproof breather vent plug,battery charge indicator and can offer you a most competitive price!.
Q2:What is your MOQ? Can we get a small order or Free sample for the first time?A:Yes, a small order or free sample can be acceptable for you to test our product quality first.
Q3:What's your payment terms?A: T/T, Trade Assurance, Paypal is recommended.
Q4:What is the lead time?A: Sample can be offered 1-5 working days, mass production time is 15 working days .
Q5:Can you print our company LOGO on the products,OEM or ODM service can be accepted?
A:Sure, OEM&ODM service is welcome
Q6:How do you ship the goods and how long does it take?A:Usually ship by DHL,UPS,FedEx or TNT,Air and sea shipping can be accepted, it takes about 5-7 days to arrive.
