Company profile:
Zhongshan Oursun New Energy Co., Ltd.
Our patented Industrial VRLA Battery Safety Valve incorporates cutting-edge technology to deliver superior battery protection.
The innovative design features:
Integrated acid filter disc for effective gas filtration
Built-in flame arrestor to prevent ignition hazards
Multi-stage protection system that:
Filters emitted gases
Blocks external flames
Reduces electrolyte loss
Maintains pressure equilibrium
This comprehensive safety solution significantly enhances:
1. Acid resistance
2. Flame retardancy
3. Water retention
4. Operational reliability
The result is extended battery service life and improved operational safety.we guarantee the highest standards of quality and
performance in every unit.
Basic Info:
Brand: Kenpo / OEM
Origin: China
Delivery: 15-20 days
Capacity quantities : 3+ million pieces per month.

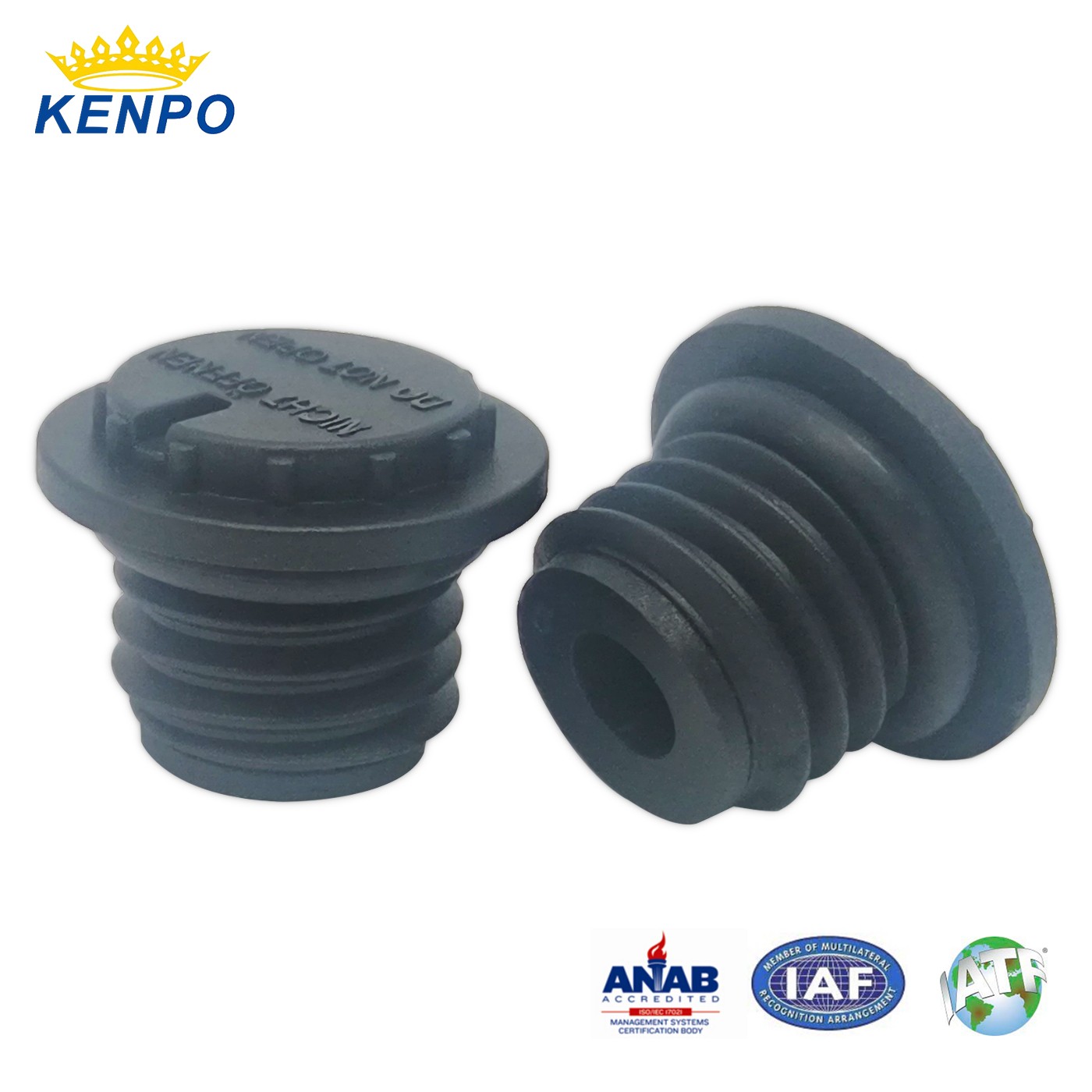

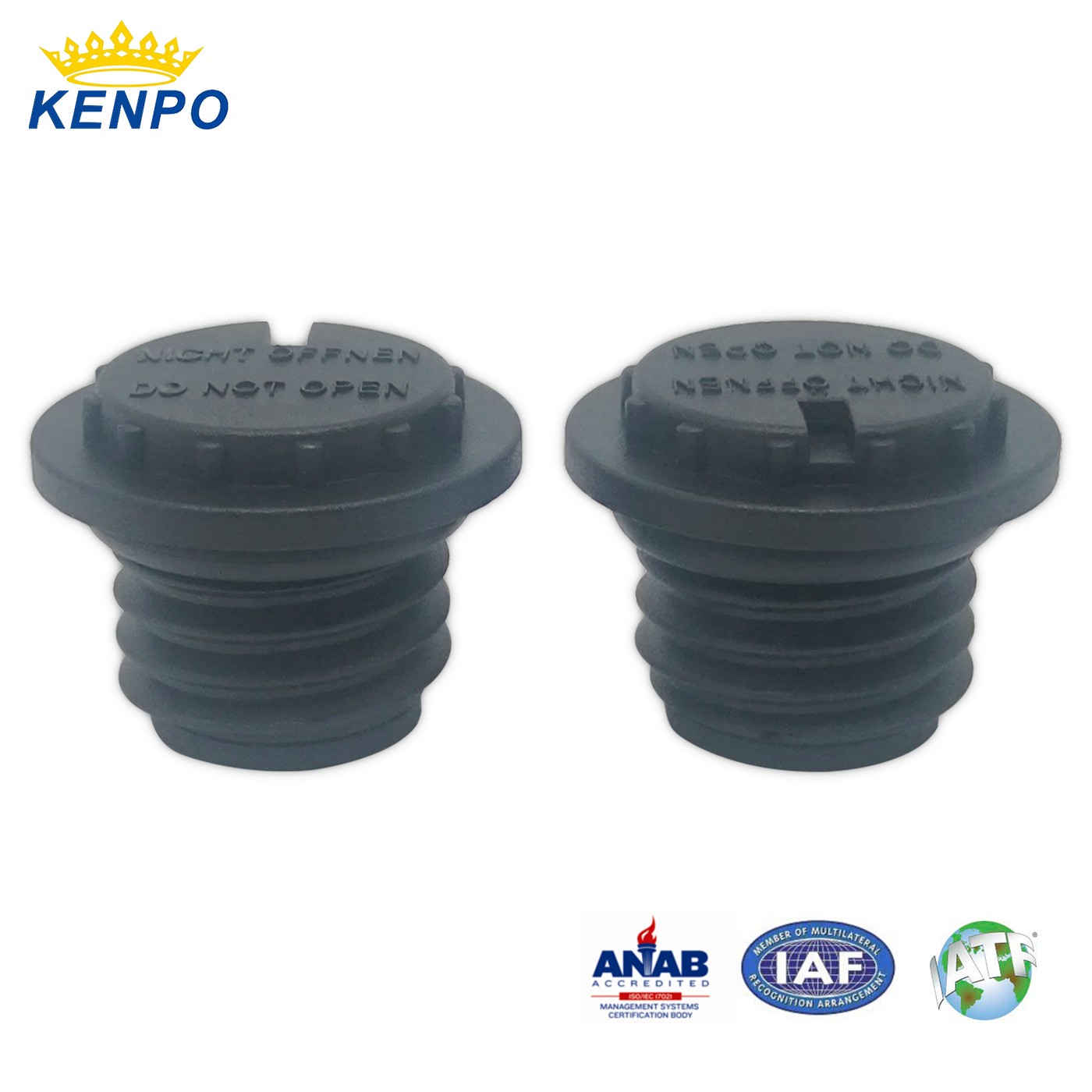

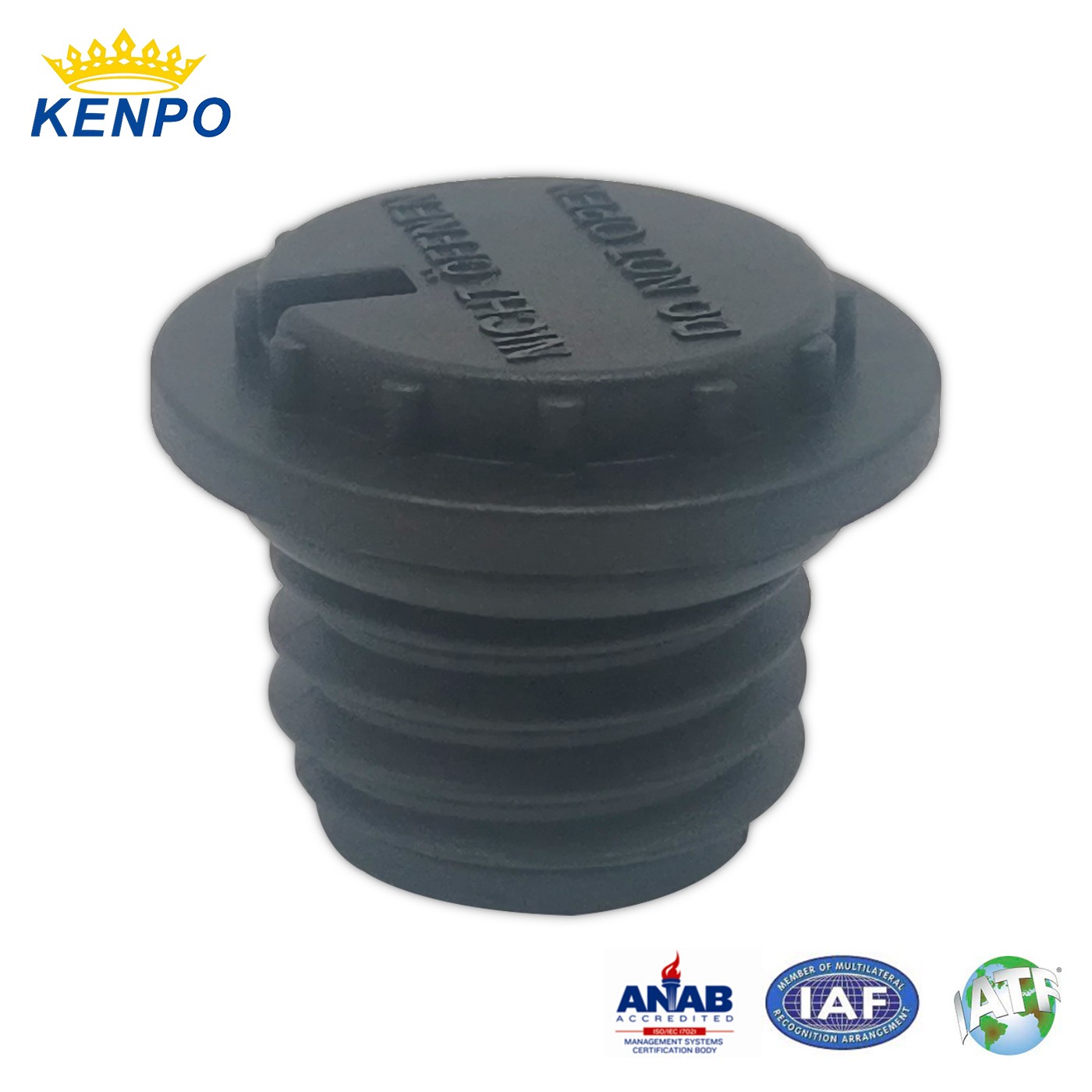

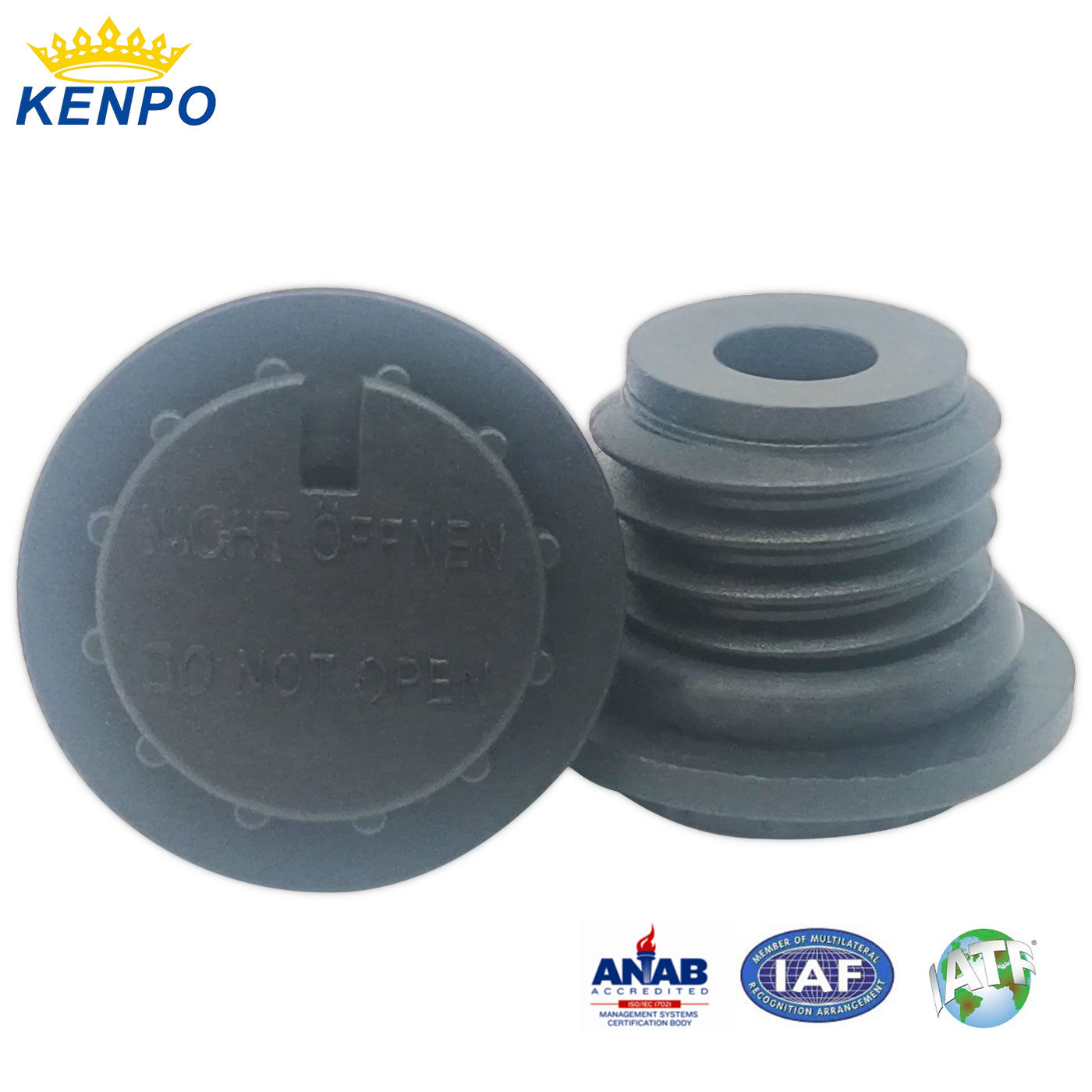

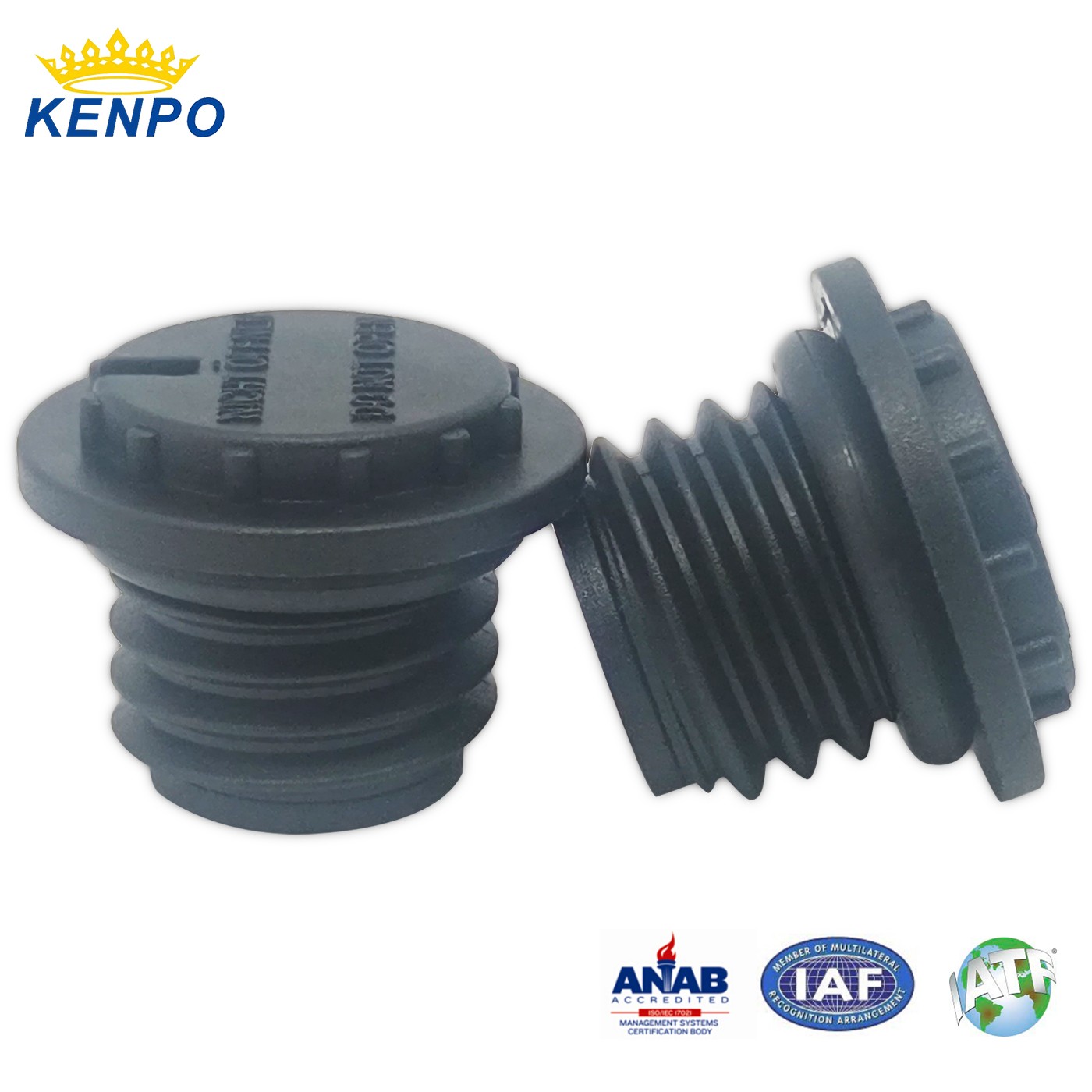

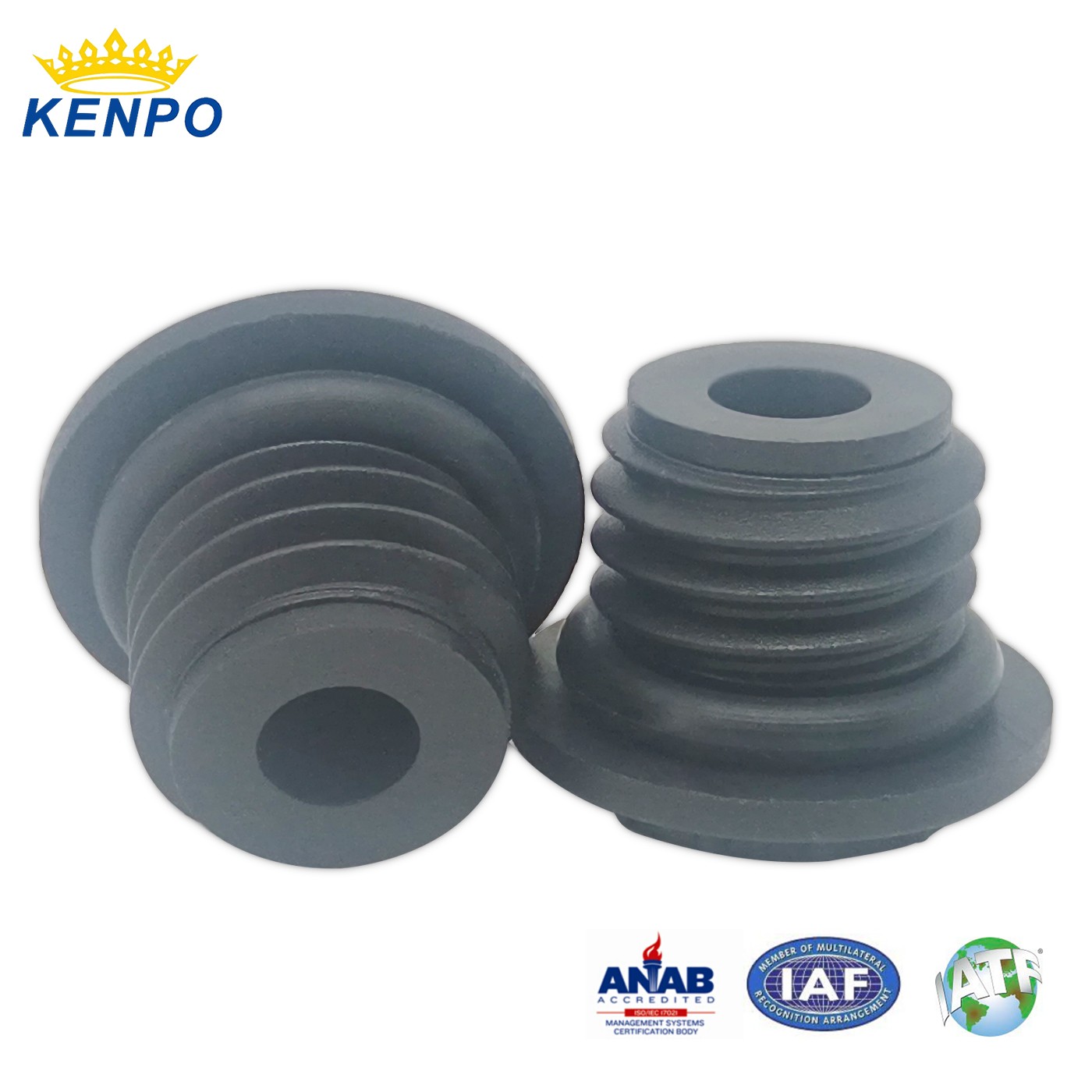

Industrial VRLA Battery Safety Valve image:
Certificate：
3. Key Design Features
Feature Description
Material High-strength polymers (PP)
Opening Pressure：Precisely calibrated
Vent Mechanism Spring-loaded, diaphragm, or rupture disc types
Flame Arrestor Microporous metal/ceramic filters to block flame propagation
Reusability Some valves reset automatically; others require replacement after activation
4. Applications
VRLA (AGM/Gel) Batteries – Prevents swelling & thermal runaway.
Flooded Lead-Acid Batteries – Reduces water loss & explosion risk.
Industrial & Automotive Batteries – Critical for forklifts, UPS systems, and starter batteries.
Key Features & Benefits
Robust Pressure Control

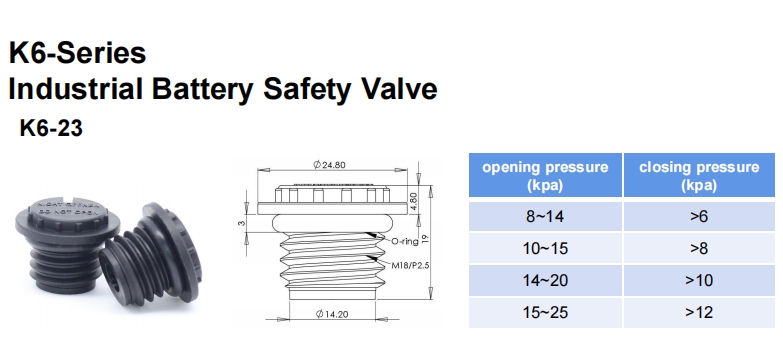

Opening pressure:13±3 Kp
Closing pressure:≥8Kp
Automatic resealing prevents electrolyte loss and external contamination
Lead-Acid Explosion-Proof Valve
Advanced Safety for Industrial & Automotive Batteries
Key Features:
Explosion-Proof Design – Prevents battery explosions by safely releasing excess pressure while blocking external sparks.
Acid Fume Filtration – Built-in PE/PP filter captures corrosive acid vapors, reducing electrolyte loss by up to 40%.
Flame Arrestor Technology – Stops flame propagation with 99%+ efficiency.
Durable Construction – High-grade nylon or ABS material resistant to acid corrosion
Pressure Regulation – Maintains optimal internal pressure to extend battery life.
Why Choose Our Valve?
Patented Design – Independently developed for superior reliability.
Low Maintenance – Reduces watering frequency and prevents terminal corrosion.
Wide Compatibility – Fits VRLA, AGM, and flooded lead-acid batteries.
Applications: Telecom, UPS, automotive, solar storage, and industrial backup systems.
Supplementary Technical Details:
The safety valve is equipped with a high-precision pressure sensor. The error in opening pressure can be controlled within ±1Kp. The sealing performance during the closing process is tested by a helium mass spectrometry leak detector, with the leakage rate being lower than 1×10⁻⁹ Pa·m³/s. The built-in acid filter sheet adopts a multi-layer composite structure, achieving a filtration efficiency of over 99.5% for acid mist. Moreover, after continuous use for 12 months, it still maintains a filtration effect of over 85%.
Production Process Description:
The outer shell of the safety valve is manufactured using an integrated injection molding process. The mold precision reaches 0.01mm, ensuring uniform assembly gaps for all components. The micro-pores of the key component, the flame arrester, are controlled at 0.1-0.2mm and are achieved through laser drilling technology. The porosity rate is stable at 35%-40%, which not only effectively blocks flames but also does not affect gas flow. Before each batch of products is put into production, they undergo a 72-hour high-temperature and high-pressure aging test. The test environment temperature is 80℃ and the pressure is 20Kp. Only those that pass the test can be released from the factory.
Storage and transportation conditions:
The safety valve can be stored in an environment ranging from -40℃ to 60℃ for up to 2 years without any performance degradation. During transportation, it can withstand vibration tests with an amplitude of 2mm and a frequency of 50Hz. When packaged properly, it can withstand a drop impact of 1 meter, ensuring intactness upon delivery to the customer.
