Ourson Company has been dedicated to battery technology research and production for a long time. It has accumulated profound professional knowledge and rich experience in the field of heavy vehicle batteries. The company aims to meet the strict power requirements of large buses, heavy-duty commercial trucks, etc., and is committed to developing high-performance and long-life battery products.
With advanced technology and a strict quality control system, Ourson continuously innovates and improves products for different types of heavy vehicle battery application scenarios, such as Large Coach Batteries and heavy duty commercial truck batteries.
From the terminal design, fixation method to the overall structure, all have been meticulously planned and optimized to ensure the product has excellent adaptability and stability, providing reliable power solutions for global customers and establishing a trustworthy brand image in the industry.
| Item | MF NS40Z/36B20/38B20 Automotive battery | Voltage | 12v |
| Standard | JIS Standard | Size | 197*129*201*225mm |
| Capacity (20hr) | 36Ah | RC | 113Min |
| Application | Starting battery for cars, trucks , buses , mining vehicles , and others vehicles . | Warranty | 12 months (from the shipping date) |
| Seperator | PE | CCA (18°c) | 480 |
| Color | black , white , yellow , gray,(optional) | Brand name | Your own brand is Avaliable |
| Flame Retardant container | Integrated computer design and reinforced PP container | Plate Material | Pb-ca-sn grid CERT |
Material and durability:
As shown in the table above,In terms of material selection, Ourson's heavy vehicle batteries demonstrate quality. The plates use Pb - ca - sn grid CERT material, which has excellent conductivity and anti-corrosion properties, effectively resisting aging phenomena such as plate sulfation during frequent charging and discharging, thereby significantly extending the battery's service life.
The separator of the battery is made of PE material, which has excellent chemical stability and mechanical strength. It can ensure the smooth passage of ions while effectively preventing short circuits between the positive and negative plates, thereby further enhancing the performance and reliability of the battery.
The battery shell is made of reinforced PP material and is optimized through integrated computer design. It not only has good flame-retardant properties but also can withstand a certain degree of external force impact, providing reliable physical protection for the internal structure of the battery.
In addition, the materials selected for the terminals and fixing components have also been carefully considered, possessing characteristics such as wear resistance and oxidation resistance, ensuring that all components of the battery can operate stably over a long period of use.
Design and Structure:
Ourson's heavy vehicle batteries are uniquely designed in terms of design and structure. From the appearance, its shell is sturdy and durable, capable of effectively resisting vibrations and impacts during vehicle operation, protecting the safety of internal components.

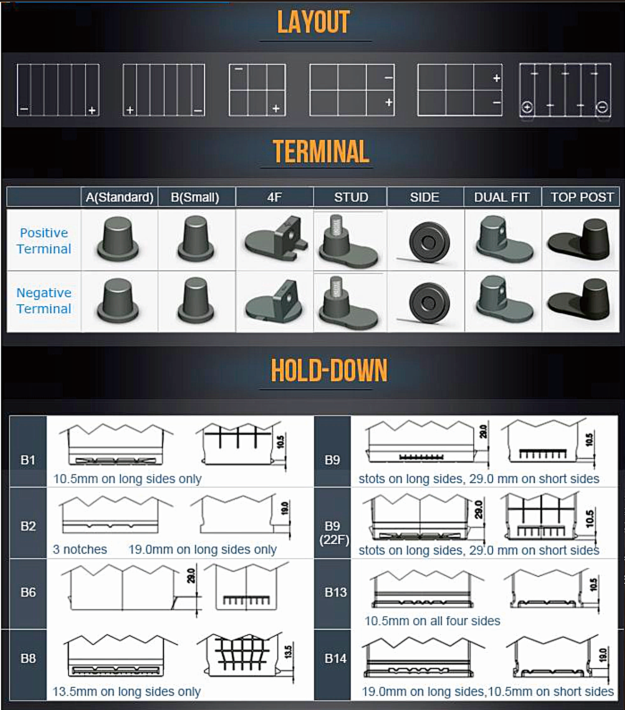

In terms of terminal design, it offers various types, including A (standard type), B (small size), 4F, STUD, SIDE, DUAL FIT, TOP POST, etc., with different styles of positive and negative terminals, providing a wide range of choices to meet the complex electrical connection requirements of various heavy vehicles, ensuring perfect compatibility with the vehicle's electrical system.
The fixation method (HOLD - DOWN) is also diverse, such as B1 specification with a 10.5mm fixation size along the long side, B2 specification with 3 slots and a depth of 19.0mm, etc.
These different fixation specifications can be flexibly selected according to the battery installation structure of different heavy vehicles, ensuring the stable installation of the battery during vehicle operation, avoiding displacement due to vibration and other factors, and ensuring the normal operation and service life of the battery.
Performance and Parameters:
Ourson's heavy vehicle batteries have outstanding performance. Taking the MF NS40Z/36B20/38B20 automotive battery as an example, its voltage is 12V, the capacity (20-hour rate) is 36Ah, the reserve capacity (RC) is 113 minutes, and the cold start current (CCA) at 18℃ can reach 480.
These parameters indicate that this battery has a powerful power output capacity, capable of providing stable and strong starting power for various vehicles such as cars, trucks, buses, and mining vehicles. As a starting battery suitable for various heavy vehicles, it complies with JIS standards and has good versatility and compatibility.
Moreover, the battery uses PE separators, with excellent ionic conductivity and anti-short-circuit performance, which can effectively ensure the smooth progress of internal chemical reactions and improve the overall performance and stability of the battery.
Additionally, the battery shell uses an integrated computer-designed reinforced PP flame-retardant container, which not only enhances the battery's safety but also extends its service life to a certain extent.
